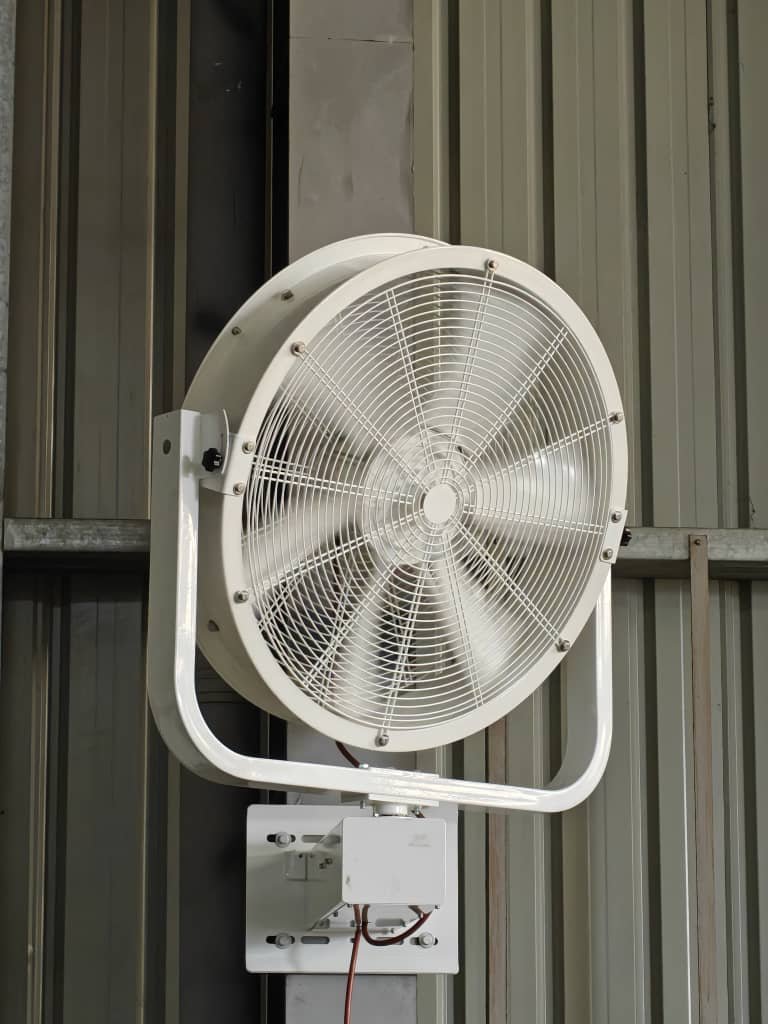

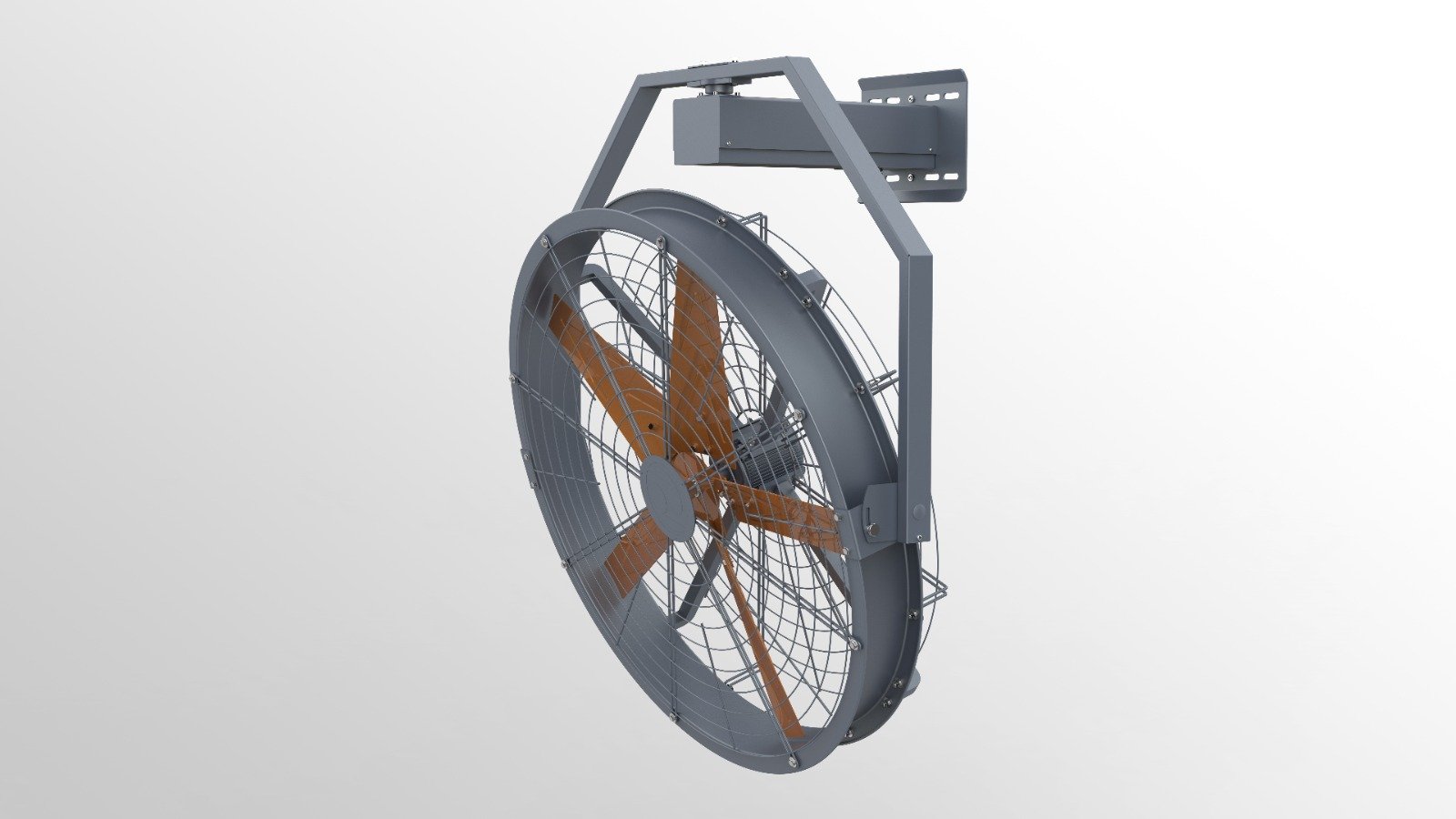

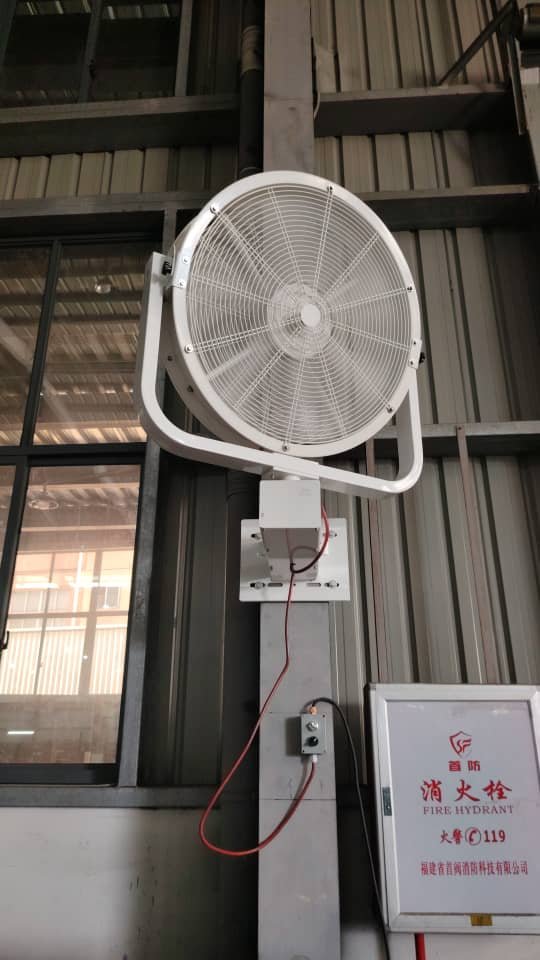

HVLS Wall Mounted Fan
Air Circulation Fan, Cooling & Air Conditioning, Industrial Circulation Fan
HVLS Wall Mounted Fan
Control system: Adopting IP54 protection level, it is not afraid of external oil pollution, dust, and moisture interference. WC control technology is easy to debug and highly adaptable.
The system is a position free positive rotation wave vector control, which is resistant to electromagnetic interference, radiation, small in size, light in weight, and has a beautiful appearance.
The system functions are simple and easy to understand, with sensitive and clear button operations.
The system comes with overvoltage, undervoltage, and undervoltage regulation, as well as protection against current, phase loss, overload, collision, overheating, lightning strikes, and abnormalities.
Customizable intelligent control methods: WLAN, Bluetooth, 46, Time, PID, Temperature control and centralized control.
K-S45 Product Technical Specifications
Detailed specifications for the Khaleegia Stand Fan
Brand
Khaleegia
Model
K-S45
Type of Fan
Stand Fan
Mounting Type
Free Standing
Voltage
220-240V/50Hz
Power Consumption (W)
60 W
Phase
Single
Body Material
Stainless Steel
Blade Material
Aluminum
Grill Material
Stainless Steel
Blade Diameter
18" (450mm)
Number of Blades
4
Color
Stainless Steel
Airflow (CFM)
cfm
Airflow ($text{m}^3/text{h}$)
0 $text{m}^3/text{h}$
Oscillation
Automatic
Adjustable Tilt
Yes
Number of Speed Settings
3
Noise Level ($text{dB}$)
dB
Operating Environment
-10C $sim$ +50C
Grill Size
21" (530mm)
Additional Information
Warranty
2 Years Warranty
Safety certifications
CE, RoHS
HDB Multi-Model Performance Specifications
Detailed performance data across different fan models
| Model | Voltage (V) | Frequency (Hz) | Current (A) | Power (kW) | Rotating Speed (r/min) | Air speed (m/s) | Air flow ($text{m}^3/text{h}$) | Noise ($text{dB}$) | Air Supply distance (m) |
|---|---|---|---|---|---|---|---|---|---|
| HDB-200 | 220/380 | 50/60 | 3.6/1.8 | 1.0 | 300 | 6 | 70000 | $le 45$ | $le 24$ |
| HDB-150 | 220/380 | 50/60 | 2.8/1.6 | 0.75 | 420 | 6.1 | 40000 | $le 45$ | $le 24$ |
| HDB-120 | 220/380 | 50/60 | 2.6/1.3 | 0.75 | 600 | 6.3 | 26000 | $le 45$ | $le 20$ |
| HDB-90 | 220/380 | 50/60 | 2.3/1.2 | 0.55 | 870 | 6.8 | 16000 | $le 45$ | $le 20$ |
| HDB-60 | 220/380 | 50/60 | 2.6/1.3 | 0.55 | 1050 | 6.8 | 10200 | $le 45$ | $le 15$ |
Control system: Adopting IP54 protection level, it is not afraid of external oil pollution, dust, and moisture interference. WC control technology is easy to debug and highly adaptable.
The system is a position free positive rotation wave vector control, which is resistant to electromagnetic interference, radiation, small in size, light in weight, and has a beautiful appearance.
The system functions are simple and easy to understand, with sensitive and clear button operations.
The system comes with overvoltage, undervoltage, and undervoltage regulation, as well as protection against current, phase loss, overload, collision, overheating, lightning strikes, and abnormalities.
Customizable intelligent control methods: WLAN, Bluetooth, 46, Time, PID, Temperature control and centralized control.
