Industrial Wall and Greenhouse Exhaust Fans

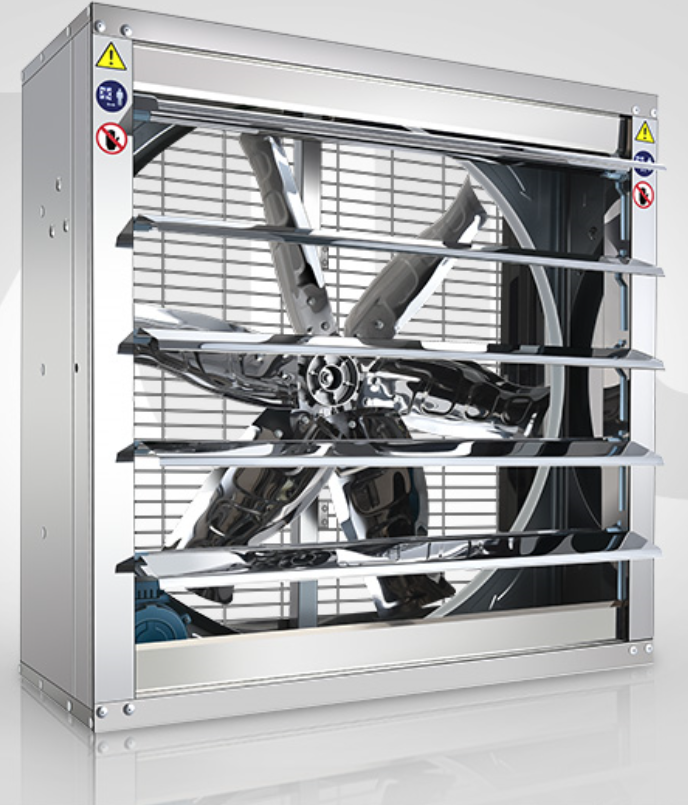

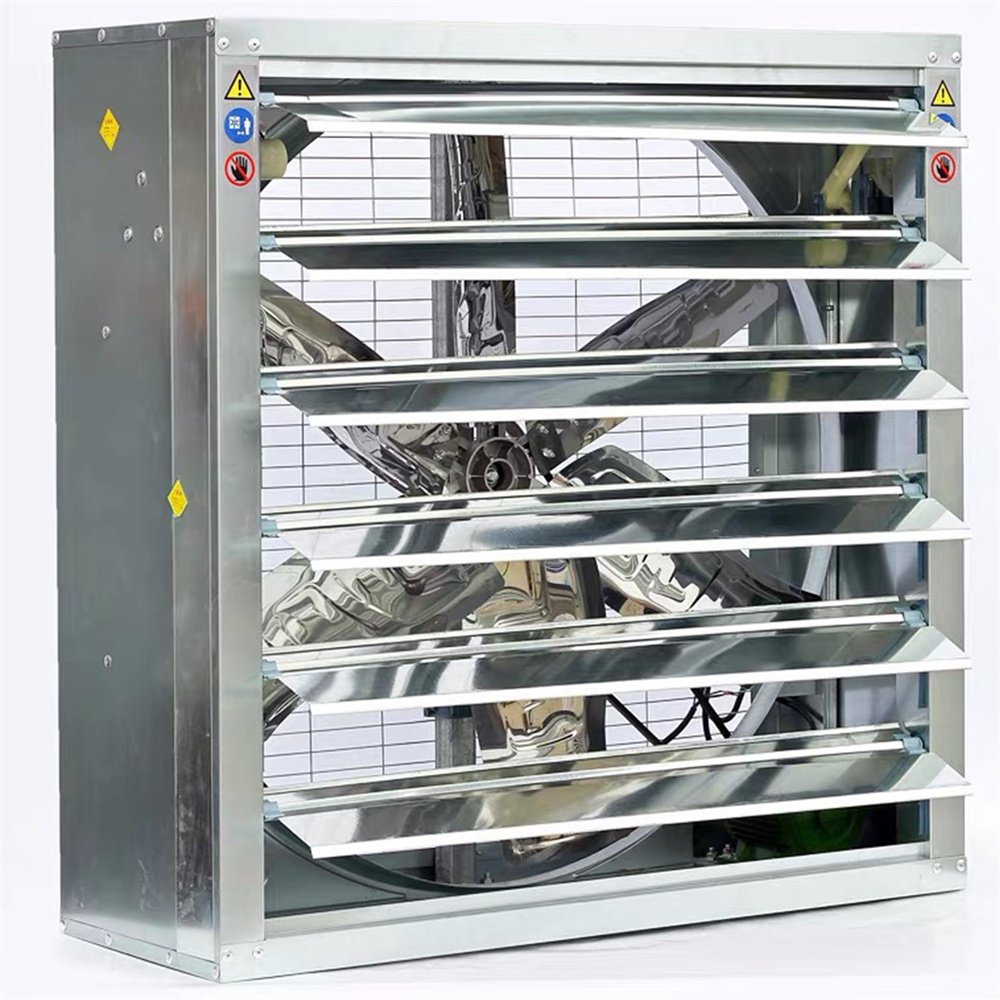

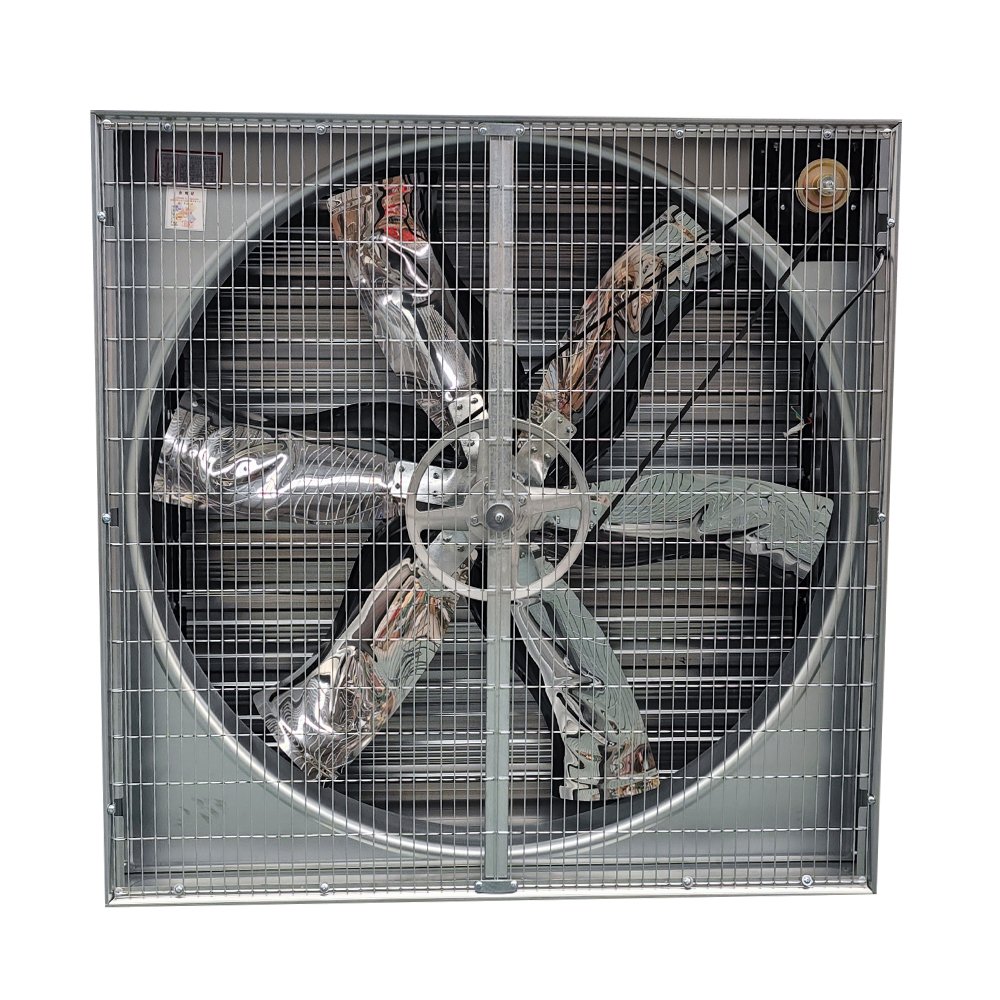

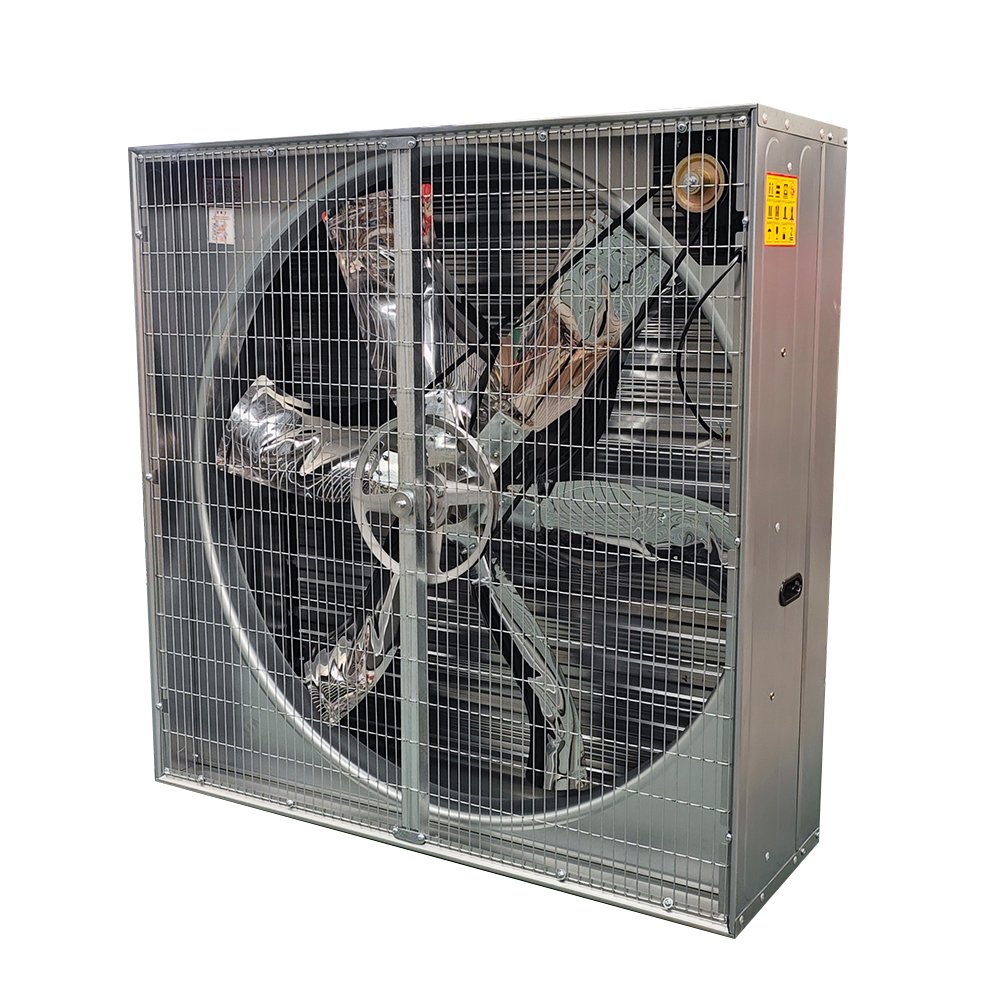

The Wall Mounted & Greenhouse Exhaust Fan is powerful ventilation solution for Greenhouse, industrial spaces and commercial spaces. Built from
galvanized steel, stainless steel, or aluminum, saving plant ventilation cooling equipment, because of the exhaust fan’s large amount of ventilation,
ventilation and cooling effect is good, low noise, the installation is very easy.
BS Series Fan Parameter Table
| Model No | Fan Dia | Airflow (m³/h) @ 0 Pa | Fan Speed (rpm) | Noise dB(A) | Power (W) | Ph/Voltage/Frequency | Dimension A*B*C (mm) | Drive Type | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|
| BS-480 | (450mm) 18" | 7600 | 1400 | 67 | 250 | 1/220-240/50-60 | 480*480*350 | Direct | 30 |
| BS-580 | (500mm) 20" | 10000 | 1400 | 69 | 330 | 1/220-240/50-60 | 580*580*350 | Direct | 30 |
| BS-680 | (610mm) 24" | 12000 | 1400 | 73 | 370 | 1/220-240/50-60 | 680*680*350 | Direct | 30 |
| BS-780 | (710mm) 26" | 23000 | 1400 | 75 | 450 | 1/220-240/50-60 | 780*780*350 | Direct | 30 |
| BS-800 | (710mm) 26" | 23000 | 1400 | 65 | 450 | 1/220-240/50-60 | 800*800*400 | Belt | 30 |
| BS-900 | (750mm) 30" | 27000 | 620 | 60 | 500 | 3/380/50-60 | 900*900*400 | Belt | 30 |
| BS-1000 | (900mm) 36" | 28000 | 580 | 63 | 550 | 3/380/50-60 | 1000*1000*400 | Belt | 30 |
| BS-1220 | (1100mm) 44" | 40000 | 520 | 65 | 750 | 3/380/50-60 | 1220*1220*400 | Belt | 30 |
| BS-1380 | (1250mm) 49" | 44000 | 450 | 68 | 1100 | 3/380/50-60 | 1380*1380*400 | Belt | 30 |
| BS-1530 | (1400mm) 54" | 53000 | 450 | 70 | 1500 | 3/380/50-60 | 1530*1530*400 | Belt | 30 |
This data sheet provides key technical details for the BS fan series, noting a split between **Direct Drive** (single-phase) and **Belt Drive** (three-phase) models.
The Wall Mounted & Greenhouse Exhaust Fan is powerful ventilation solution for Greenhouse, industrial spaces and commercial spaces. Built from
galvanized steel, stainless steel, or aluminum, saving plant ventilation cooling equipment, because of the exhaust fan’s large amount of ventilation,
ventilation and cooling effect is good, low noise, the installation is very easy.
