Infrared Radiant Glass Heater Lamp Heater
Electric Heater, Heating, Infrared Radiant Glass Heater Lamp Heater
Infrared Radiant Glass Heater Lamp Heater
The newly designed glass heater is incredibly stylish and understated. It incorporates with high quality glass panel which has a good performance of thermal radiation.
Softer radiant heat can be felt as soon as you switch it on
Six step remote control, and LED screen can show the dimmer step
IP65 rated waterproof and suitable for outdoor environments
Product Technical Specifications
Model Series C Specifications
| Feature | C3/1-13 | C5/3-13 | C9/3 | C15/3 | C30/3 |
|---|---|---|---|---|---|
| Power | 3KW | 5KW | 9KW | 15KW | 30KW |
| Electric Supply | 220-240V~ 50Hz | 380-400V 3~ 50Hz | 380-400V 3~ 50Hz | 380-400V 3~ 50Hz | 380-400V 3~ 50Hz |
| Setting (W) | 25/1500/3000 | 30/2500/5000 | 52/4500/9000 | 110/5000/10000/15000 | 70/15000/30000 |
| Air output (m³/h) | 360 | 388 | 980 | 1100 | 1911 |
| Heating area (m³) | 60 | 100 | 180 | 300 | 600 |
| Product meas. (mm) | 315*330*400 | 315*330*400 | 350*405*460 | 495*520*860 | 400*310*460 |
| Packing meas. (mm) | 455*345*490 | 290*215*310 | 330*250*355 | 330*250*355 | 645*565*860 |
| Packing (pcs) | 1 | 1 | 1 | 1 | 1 |
| N.W. (kg) | 6.6 | 7.5 | 11.9 | 22 | 32 |
| G.W. (kg) | 7.5 | 8.3 | 13 | 23.5 | 34 |

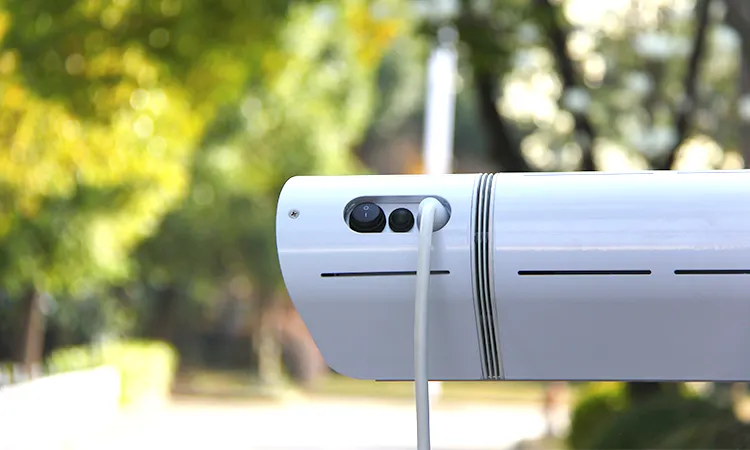

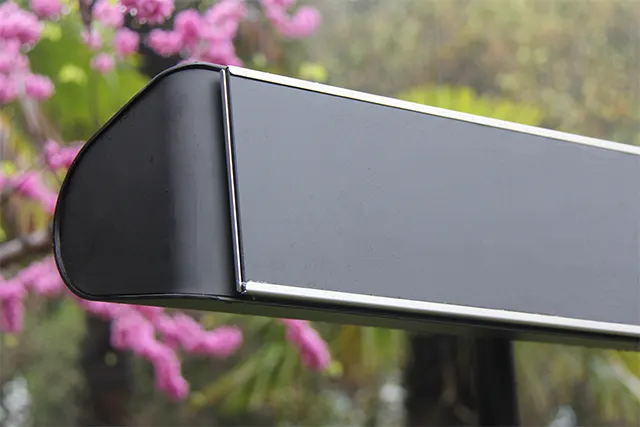

Product Details: LDHR 094-200KY / 250KY
- Type
- LDHR 094-200KY / 250KY
- Housing Material
- Aluminum, glass
- Work Locations
- Outdoor
- Heat Area
- 15-18 sqm
- Protection Class
- IP 65
- Installation Method
- Wall mounted or mounted on heater stands
- Heating Tube
- ULG+ lamp
- Voltage
- 220-240V ~ 50/60Hz
- Power
- 2000W / 2500W
- Dimensions (L x W x H)
- 850x140x120mm
- Weight
- 4.56 Kg
- Remote control range
- Up to 6 m
- Optional color
- Black / White
Note: "meast" has been interpreted as "measurement." N.W. is Net Weight, and G.W. is Gross Weight.
The newly designed glass heater is incredibly stylish and understated. It incorporates with high quality glass panel which has a good performance of thermal radiation.
Softer radiant heat can be felt as soon as you switch it on
Six step remote control, and LED screen can show the dimmer step
IP65 rated waterproof and suitable for outdoor environments
