Straight Vanes Turbine Roof Ventilator
Industrial Natural Roof Ventilation, Straight Vanes Turbine Roof Ventilator, Ventilation & Exhaust

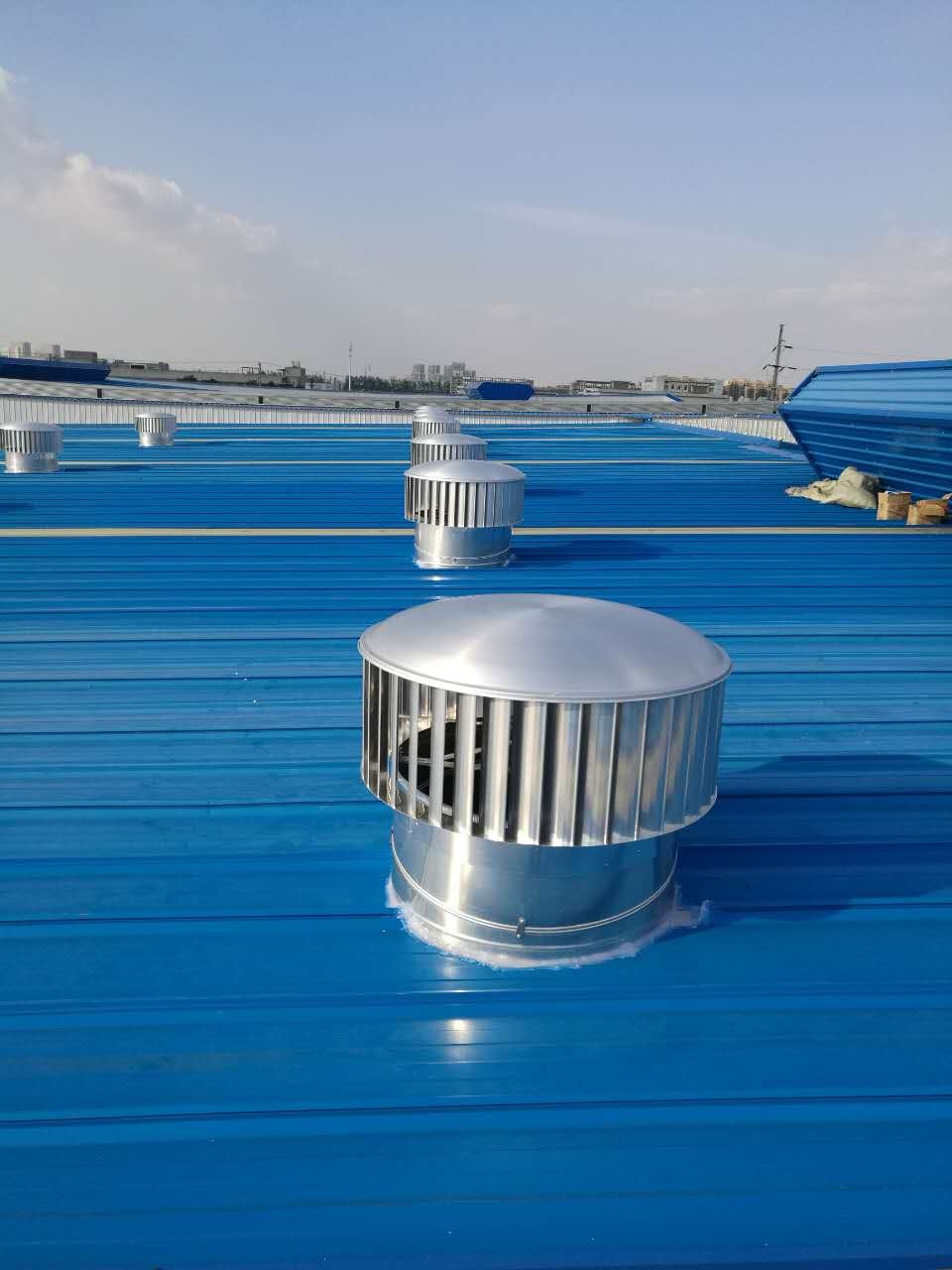

Straight Vanes Turbine Roof Ventilator

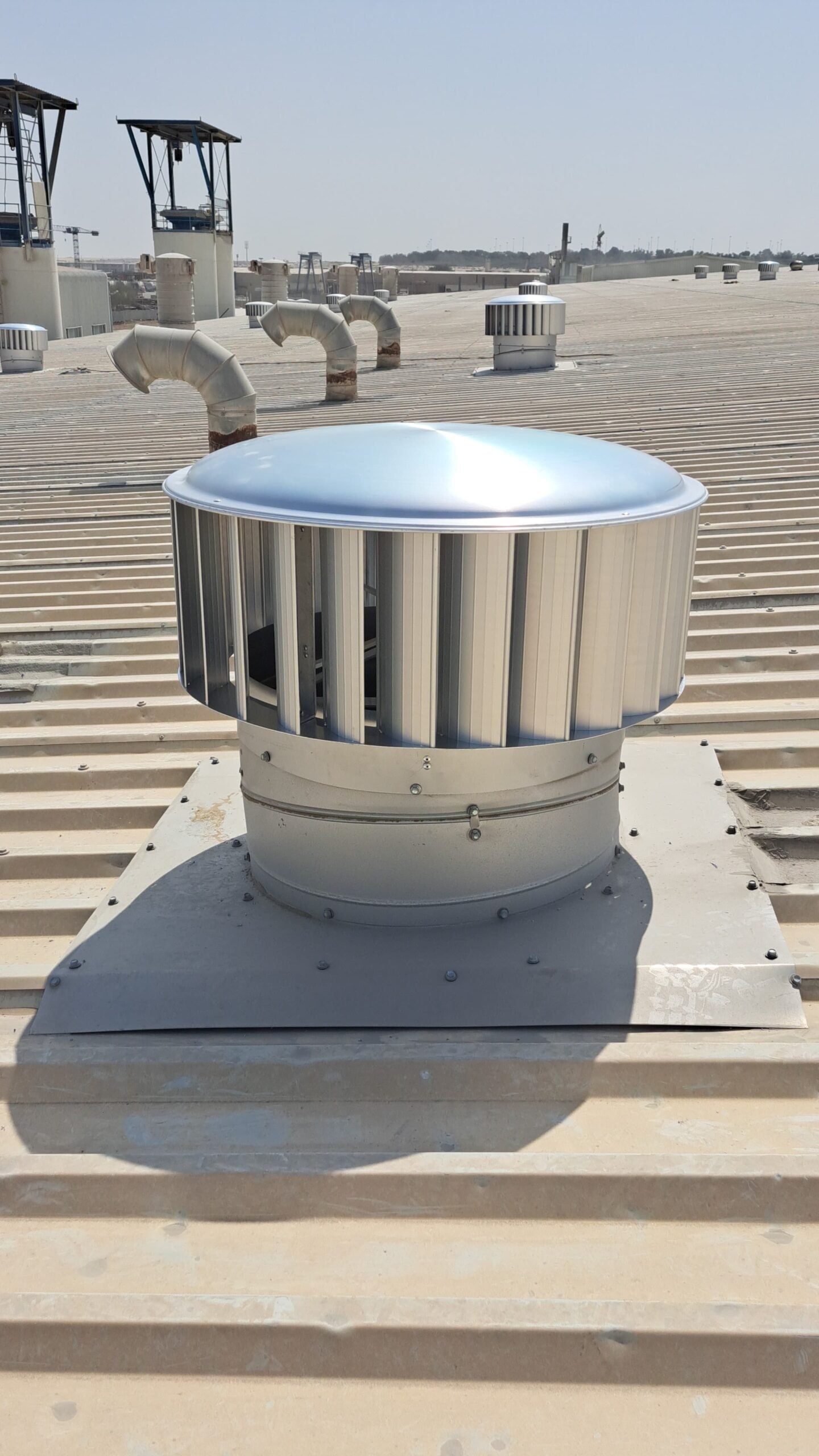

TURBINE ROOF VENTILATOR

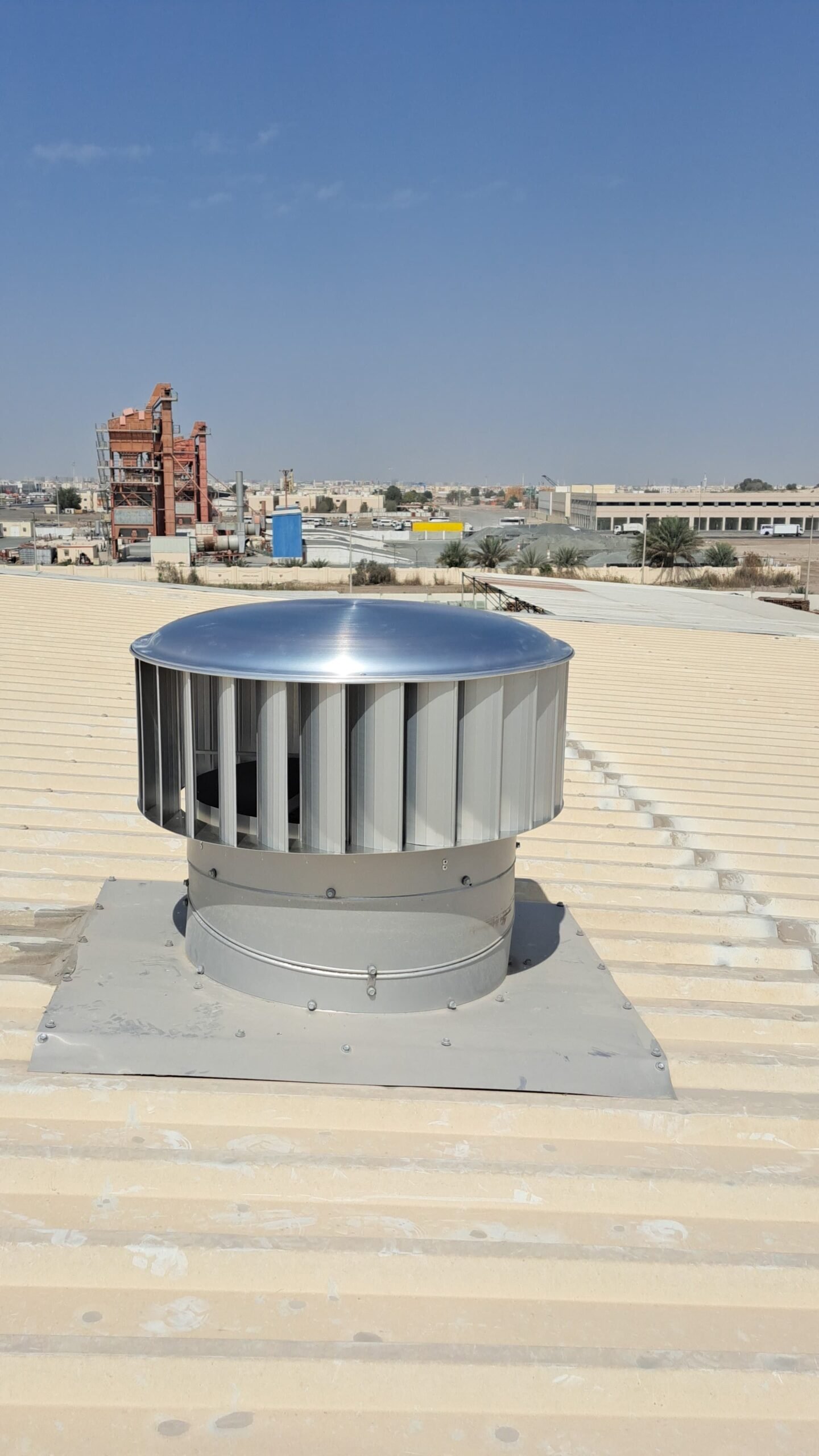

STRAIGHT VANES ROOF TURBINE VENTILATOR
Turbine Roof Ventilator Specifications (Combined Models)
Turbo Vent Series
| Name | Specification | |||
|---|---|---|---|---|
| Component | Property | 300mm Turbo Vent (12" Dia) | 500mm Turbo Vent (20" Dia) | 600mm Turbo Vent (24" Dia) |
| Top Dome | Dia | 300mm | 500mm | 600mm |
| Thickness | 0.8mm | 0.8mm | 0.8mm | |
| Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | |
| Surface Treatment | Fluorocarbon Coating – anti-corrosive | Fluorocarbon Coating – anti-corrosive | Fluorocarbon Coating – anti-corrosive | |
| Vane | Vane Quantity | 21 pieces | 32 pieces | 32 pieces |
| Vane Thickness | 0.5mm | 0.5mm | 0.5mm | |
| Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | |
| Surface Treatment | Fluorocarbon Coating – anti-corrosive | Fluorocarbon Coating – anti-corrosive | Fluorocarbon Coating – anti-corrosive | |
| Vane Ring | Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Surface Treatment | Fluorocarbon Coating – anti-corrosive | Fluorocarbon Coating – anti-corrosive | Fluorocarbon Coating – anti-corrosive | |
| Thickness | 0.8mm | 0.8mm | 0.8mm | |
| Dia. | ⌀ 300mm | ⌀ 500mm | ⌀ 600mm | |
| Varipitch | Dia. | ⌀ 300mm | ⌀ 500mm | ⌀ 600mm |
| Height | 250mm | 380mm | 415mm | |
| Thickness | 0.8mm | 0.8mm | 0.8mm | |
| Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | |
| Surface Treatment | Fluorocarbon Coating – anti-corrosive | Fluorocarbon Coating – anti-corrosive | Fluorocarbon Coating – anti-corrosive | |
| Base Plate | Size | 650mm x 650mm | 800mm x 800mm | 900mm x 900mm |
| Thickness | 0.8mm | 0.8mm | 0.8mm | |
| Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | |
| Surface Treatment | Fluorocarbon Coating – anti-corrosive | Fluorocarbon Coating – anti-corrosive | Fluorocarbon Coating – anti-corrosive | |
| Upper Bracket | Thickness | 2.0mm | 2.0mm | 2.0mm |
| Material | Mill Finish Aluminum Alloy | Mill Finish Aluminum Alloy | Mill Finish Aluminum Alloy | |
| - Lower Bracket | Material | 302 Stainless Steel | 302 Stainless Steel | 302 Stainless Steel |
| Upper Bearing | Material & Brand | NSK stainless steel enclosed bearing – permanently lubricating and free maintenance | ||
| Lower Bearing | Material & Brand | NSK stainless steel enclosed bearing – permanently lubricating and free maintenance | ||
| Shaft | Material | Carbon steel | Carbon steel | Carbon steel |
| Surface Treatment | Color zinc-plated – anti-rust and anti-corrosive | Color zinc-plated – anti-rust and anti-corrosive | Color zinc-plated – anti-rust and anti-corrosive | |
| Net weight | Net weight | N/A | 14.5 kg | 17.5 kg |
| Exhaust Capacity | Wind speed 2m/s | N/A | 3404 m³/h | 5747 m³/h |
| Wind speed 4m/s | 990 m³/h | 3714 m³/h | 6237 m³/h | |
| Wind speed 6m/s | 1490 m³/h | 4035 m³/h | 6802 m³/h | |
| Wind speed 8m/s | N/A | 5123 m³/h | 8260 m³/h | |

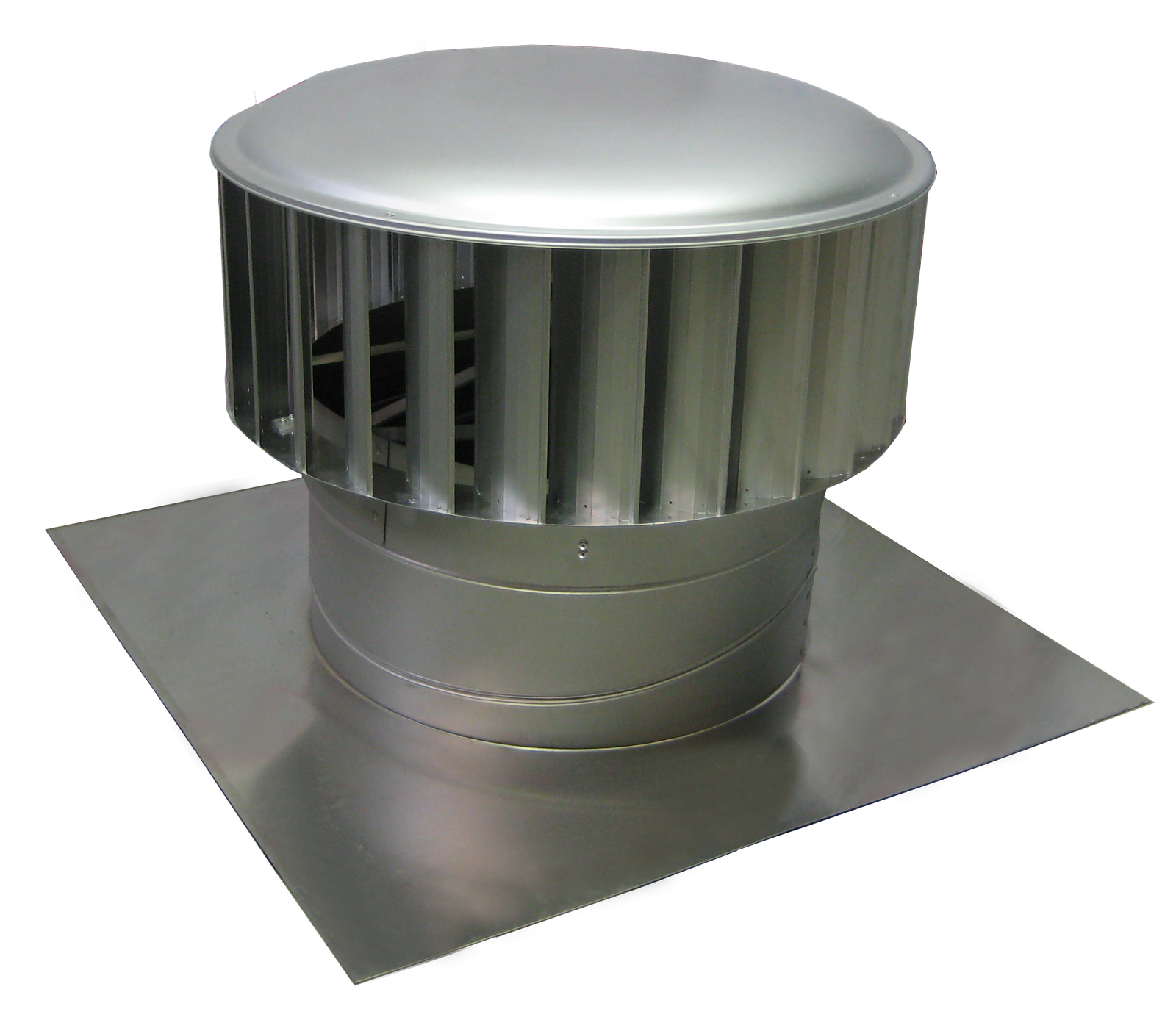

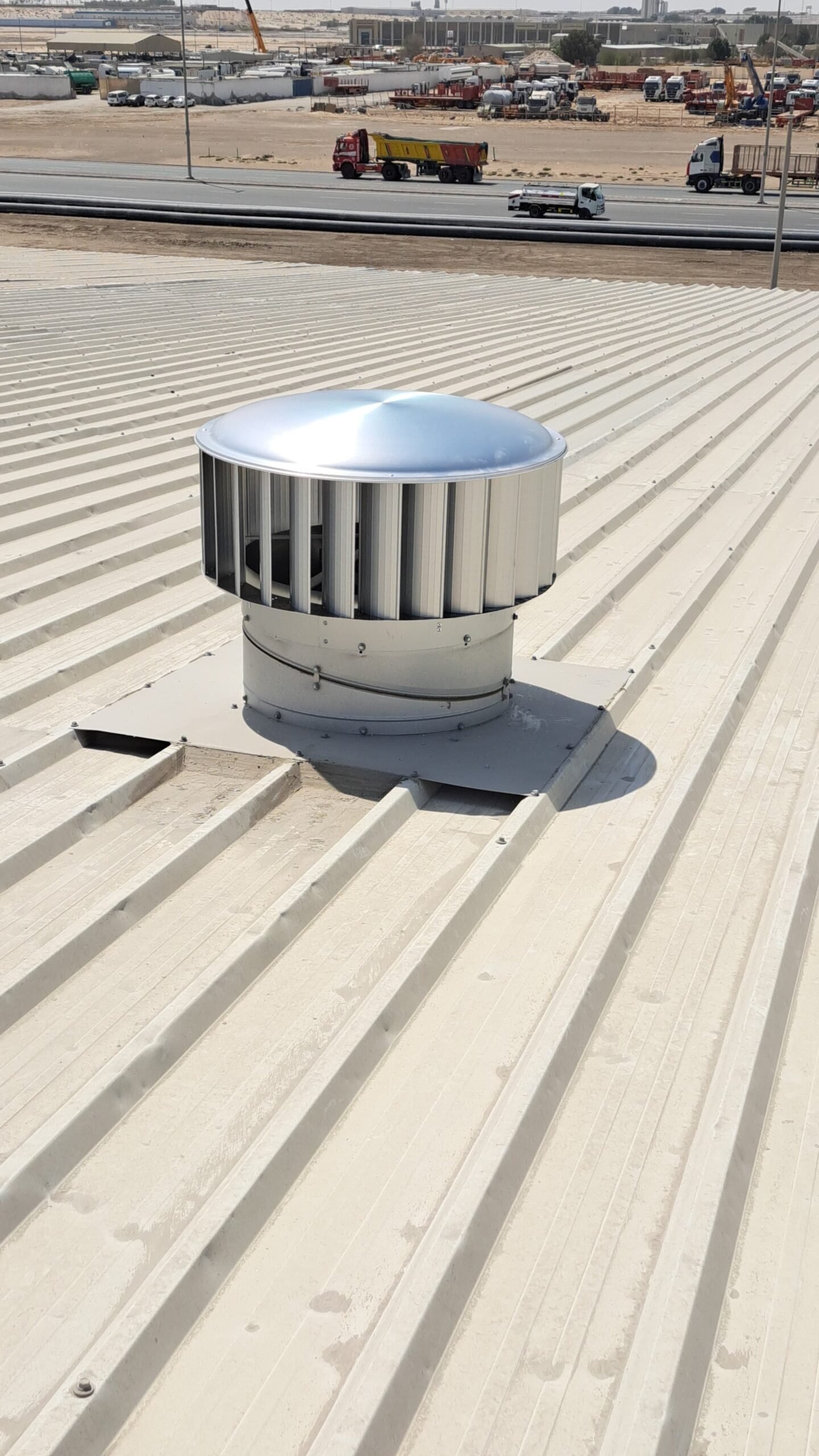

SV Vent Series
| Name | Specification | |||
|---|---|---|---|---|
| Component | Property | 600mm SV Vent (24") | 700mm SV Vent (28") | 900mm SV Vent (36") |
| Top Dome | Dia | 600mm | 700mm | 900mm |
| Thickness | 1.1mm | 1.1mm | 1.1mm | |
| Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | |
| Surface Treatment | Anodic Oxidation + anti-corrosive | Anodic Oxidation + anti-corrosive | Anodic Oxidation + anti-corrosive | |
| Vane | Vane Quantity | 27 pieces | 30 pieces | 39 pieces |
| Thickness | 0.8mm | 0.8mm | 0.8mm | |
| Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | |
| Surface Treatment | Anodic Oxidation + anti-corrosive | Anodic Oxidation + anti-corrosive | Anodic Oxidation + anti-corrosive | |
| Throat | Thickness | 0.8mm | 0.8mm | 0.8mm |
| Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | |
| Surface Treatment | Polyester coating + anti-corrosive | Polyester coating + anti-corrosive | Polyester coating + anti-corrosive | |
| Diameter | ⌀ 600mm | ⌀ 700mm | ⌀ 900mm | |
| Varipitch | Diameter | ⌀ 600mm | ⌀ 700mm | ⌀ 900mm |
| Height | 230mm | 340mm | 390mm | |
| Thickness | 0.8mm | 0.8mm | 0.8mm | |
| Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | |
| Surface Treatment | Polyester coating + anti-corrosive | Polyester coating + anti-corrosive | Polyester coating + anti-corrosive | |
| Base Plate | Size | 900mm * 900mm | 1000mm * 1000mm | 1200mm * 1200mm |
| Thickness | 0.8mm | 1.2mm | 1.2mm | |
| Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | |
| Surface Treatment | Mill Finish | Mill Finish | Mill Finish | |
| Upper Bracket | Thickness | 4.0mm | 5.0mm | 5.0mm |
| Material | Aluminum Alloy | Carbon Steel | Carbon Steel | |
| Surface Treatment | Powder Coating + anti-rust | Powder Coating + anti-rust | Powder Coating + anti-rust | |
| Treatment | anti-corrosive | anti-corrosive | anti-corrosive | |
| Lower Bracket | Thickness | 1.5mm (Double layer Trapezoid Structure) | 1.8mm (Double layer Trapezoid Structure) | 1.8mm (Double layer Trapezoid Structure) |
| Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | |
| Surface Treatment | Mill Finish | Mill Finish | Mill Finish | |
| Bearings | Upper Bearing | Permanently lubricating double row bearings | Permanently lubricating double row bearings | Permanently lubricating enclosed cylindrical bearings |
| Lower Bearing | Enclosed ball bearings | Enclosed ball bearings | Enclosed ball bearings | |
| Shaft | Material | Carbon Steel | Carbon Steel | Carbon Steel |
| Surface Treatment | Color zinc plated + anti-rust | Color zinc plated + anti-rust | Color zinc plated + anti-rust | |
| Vane ring/circular disk | Thickness | 1.0mm thick aluminum alloy circular disk | 1.2mm thick aluminum alloy circular disk | 1.2mm thick aluminum alloy circular disk |
| Strengthen Support | Property | / | Strengthen aluminum support | Strengthen aluminum support |
| Vent Height | Property | 800mm | 900mm | 1000mm |
| Head Dia. | Property | 52.0mm | 57.0mm | 68.0mm |
| Net Weight | Property | 18.5kg | 24.5kg | 38.5kg |
| Exhaust Capacity | Wind speed 2m/s | 248.0 m³/h | 281.3 m³/h | 5714 m³/h |
| Wind speed 4m/s | 5171 m³/h | 6003 m³/h | 10888 m³/h | |
| Wind speed 6m/s | 7748 m³/h | 8908 m³/h | 16300 m³/h | |
| Wind speed 8m/s | 9582 m³/h | 11405 m³/h | 20349 m³/h | |
| Wind speed 10m/s | 12838 m³/h | 14105 m³/h | 28349 m³/h | |
Note: All measurements and specifications are transcribed from the provided images.
